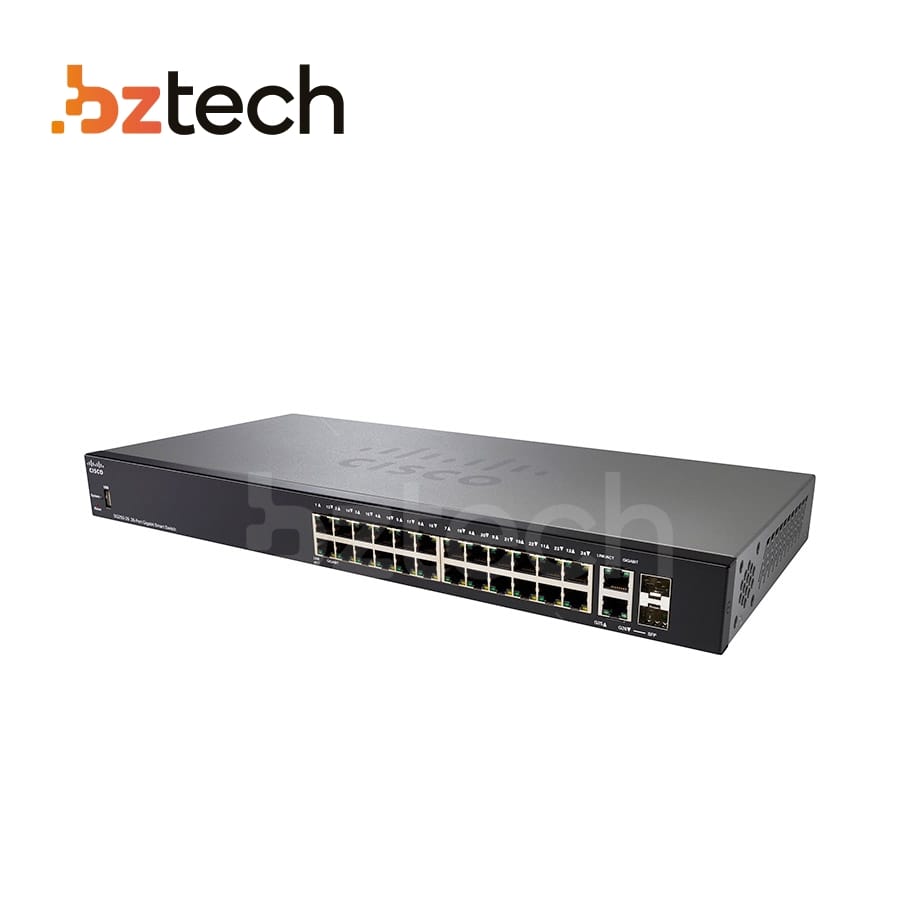

Switch Cisco SG250-26 Gerenciável - 26 Portas Gigabit (PN: SG250-26-K9-BR_PRP)

Código do Produto: SG250-26-K9-BR_PRP

Fabricante: Cisco | Categoria(s): Fora de Linha , Switch

Avaliar este produto

Produto Indisponível Infelizmente este produto encontra-se temporariamente indisponível.
Clique nos links abaixo para encontrar produtos similares.

Categoria:

Fora de Linha Switch

Produtos Relacionados

Descrição
Etiquetas (0)
Ribbons (0)
Peças e Acessórios (0)
Suprimentos (0)
Garantia Estendida (0)
Softwares (0)

Descrição

No mundo hiperconectado de hoje, o acesso confiável aos recursos de rede é fundamental para todas as empresas. No entanto, você também precisa investir com sabedoria para permanecer competitivo, sabendo separar o essencial do irrelevante e obter o máximo valor pelo seu dinheiro. Adquirindo o Switch Cisco SG250-26G você consegue tudo isso e mais!

Crie uma rede comercial confiável e fácil de usar a um preço acessível com o Switch Cisco SG250-26

Com os switches inteligentes Cisco 250 Series, você pode obter segurança e desempenho de rede de classe empresarial sem pagar por recursos de rede avançados que não usará. Quando você precisa de uma solução confiável para compartilhar recursos online e conectar computadores, telefones e pontos de acesso sem fio, mas o baixo custo é a principal prioridade, os Cisco 250 Series Smart Switches oferecem a solução ideal.

Quais outros benefícios do Switch Cisco SG250-26G? Confira!

Fácil configuração e gerenciamento
Confiabilidade e desempenho
Roteamento estático da camada 3
Segurança de rede
Suporte IPv6
Suporte mundial
Eficiência energética

Ribbons

Peças e Acessórios

Suprimentos

Garantia Estendida

Softwares

Perguntas e Respostas

Para fazer uma pergunta você precisa estar logado. Fazer login.

Dados Técnicos

Especificações

Portas

26 Gigabit Ethernet
24 Gigabit Ethernet
2 Gigabit Ethernet combo

USB slot

USB Type-A slot on the front panel of the switch for easy file and image management

Botões

Reset button

Cabling type

Unshielded Twisted Pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5e or better for 1000BASE-T

Mounting Options

Desktop placement, rackmount (excluding SG250-08 and SG250-08HP) and wall-mount

LEDs

System, Link/Act, PoE, Speed

Flash

256 MB

CPU

800 MHz ARM

CPU memory

512 MB

Packet buffer

12 Mb

Características Ambientais e Físicas

Dimensões	440 x 44 x 202 mm (17.3 x 1.73 x 7.95 in)
Peso	2.72 kg (6.0 lb)
Potência	100 a 240V, 50 a 60 Hz, internal, universal
Certificação	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Temperatura de operação	32° to 122°F (0° to 50°C)
Temperatura de armazenamento	-4° to 158°F (-20° to 70°C)
Umidade de operação	10% to 90%, relative, noncondensing
Umidade de armazenamento	10% to 90%, relative, noncondensing
Ruido	Sem ventilador

Configurações mínimas

Web browser	Mozilla Firefox version 36 or later; Microsoft Internet Explorer version 9 or later, Chrome version 40 or later, Safari version 5 or later
Category 5 Ethernet network cable
TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed

Performance

Capacidade de comutação	38,69 mpps
Taxa de encaminhamento	52 Gbps

Chaveamento Camada 2

Spanning Tree Protocol (STP)

Standard 802.1d spanning tree support
Fast convergence using 802.1w (Rapid Spanning Tree Protocol [RSTP]), enabled by default
Multiple spanning tree instances using 802.1s (MSTP); 8 instances are supported
Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported

Port grouping/link aggregation

Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)

Up to 4 groups
Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad LAG

VLAN

Support for up to 255 active VLANs simultaneously
Port-based and 802.1Q tag-based VLANs
Management VLAN
Guest VLAN

Voice VLAN

Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS.
Auto voice capabilities deliver networkwide zero-touch deployment of voice endpoints and call control devices

IGMP querier

Used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router

HOL blocking

Head-Of-Line (HOL) blocking

Loopback detection

Provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP

Roteamento Camada 3

IPv4 routing

Wire-speed routing of IPv4 packets
Up to 32 static routes and up to 16 IP interfaces

IPv6 routing

Wire-speed routing of IPv6 packets

Layer 3 interface

Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface

Classless Interdomain Routing (CIDR)

Support for CIDR

DHCP relay at Layer 3

Relay of DHCP traffic across IP domains

User Datagram Protocol (UDP) relay

Relay of broadcast information across Layer 3 domains for application discovery or relaying of bootP/DHCP packets

Segurança

SSL

Secure Sockets Layer (SSL) encrypts all HTTPS traffic, allowing secure access to the browser-based management GUI in the switch

Secure Shell (SSH) Protocol

SSH is a secure replacement for Telnet traffic. Secure Copy (SCP) also uses SSH. SSH v1 and v2 are supported

IEEE 802.1X (authenticator role)

RADIUS authentication, guest VLAN, single/multiple host mode, and single/multiple sessions

Secure Core Technology (SCT)

Ensures that the switch will receive and process management and protocol traffic no matter how much traffic is received

Secure Sensitive Data (SSD)

A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices, and secure autoconfig. Access to view the sensitive data as plaintext or encrypted is provided according to the user-configured access level and the access method of the user

Trustworthy systems

Trustworthy systems provide a highly secure foundation for Cisco products
Run-time defenses (Executable Space Protection [X-Space], Address Space Layout Randomization [ASLR], Built-In Object Size Checking [BOSC])

Port security

Ability to lock source MAC addresses to ports and limit the number of learned MAC addresses

RADIUS

Supports RADIUS authentication for management access. Switch functions as a client

Storm control

Broadcast, multicast, and unknown unicast

DoS prevention

Denial-of-Service (DoS) attack prevention

Multiple user privilege levels in CLI

Level 1, 7, and 15 privilege levels

Access Control Lists (ACLs)

Drop or rate limit based on source and destination MAC, VLAN ID or IP address, protocol, port, differentiated services code point (DSCP)/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag; ACL can be applied on both ingress and egress sides
Time-based ACLs supported
Support for up to 512 rules

STP loopback guard

Provides additional protection against Layer 2 forwarding loops (STP loops)

Qualidade de Serviço

Priority levels	8 hardware queues
Scheduling	Strict priority and Weighted Round-Robin (WRR) queue assignment based on DSCP and class of service (802.1p/CoS)
Class of service	Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence/Type of Service (ToS)/DSCP based; Differentiated Services (DiffServ); classification and re-marking ACLs, trusted QoS
Rate limiting	Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based
Congestion avoidance	A TCP congestion avoidance algorithm is required to reduce and prevent global TCP loss synchronization

Padrões

IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.3 ad LACP, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 920, RFC 922, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1213, RFC 1215, RFC 1286, RFC 1350, RFC 1442, RFC 1451, RFC 1493, RFC 1533, RFC 1541, RFC 1542, RFC 1573, RFC 1624, RFC 1643, RFC 1700, RFC 1757, RFC 1867, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2030, RFC 2131, RFC 2132, RFC 2233, RFC 2576, RFC 2616, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3416, RFC 4330

IPv6

IPv6 host mode
IPv6 over Ethernet
Dual IPv6/IPv4 stack
IPv6 neighbor and Router Discovery (ND)
IPv6 stateless address auto configuration
Path Maximum Transmission Unit (MTU) discovery
Duplicate Address Detection (DAD)
Internet Control Message Protocol (ICMP) version 6
IPv6 over IPv4 network with Intrasite Automatic Tunnel Addressing Protocol (ISATAP) support
USGv6 and IPv6 Gold Logo certified

IPv6 QoS

Prioritize IPv6 packets in hardware

IPv6 ACL

Drop or rate limit IPv6 packets in hardware

Multicast Listener Discovery (MLD v1/2) snooping

Deliver IPv6 multicast packets only to the required receivers

IPv6 applications

Web/SSL, Telnet server/SSH, Ping, Traceroute, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), Simple Network Management Protocol (SNMP), Remote Authentication Dial-In User Service (RADIUS), Syslog, DNS client, DHCP client, DHCP autoconfig

IPv6 RFCs supported

RFC 4443 (which obsoletes RFC 2463)	ICMPv6
RFC 4291 (which obsoletes RFC 3513)	IPv6 address architecture
RFC 4291	IPv6 Addressing Architecture
RFC 2460	IPv6 Specification
RFC 4861 (which obsoletes RFC 2461)	Neighbor Discovery for IPv6
RFC 4862 (which obsoletes RFC 2462)	IPv6 Stateless Address Autoconfiguration
RFC 1981	Path MTU Discovery
RFC 4007	IPv6 Scoped Address Architecture
RFC 3484	Default address selection mechanism
RFC 5214 (which obsoletes RFC 4214)	ISATAP tunneling
RFC 4293; MIB IPv6	Textual Conventions and General Group
RFC 3595	Textual Conventions for IPv6 Flow Label

Gerenciamento

Web user interface

Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, wizards, system dashboard, system maintenance, and monitoring
Basic and advanced mode for maximum operational efficiency

Smart Network Application (SNA)

An innovative network-level monitoring and management tool embedded in Cisco 250 to 550X Series switches. It can discover network topology, display link status, monitor events, apply configurations, and upgrade software images across multiple switches in the network

SNMP

SNMP versions 1, 2c, and 3 with support for traps, and SNMP v3 User-based Security Model (USM)

Remote Monitoring (RMON)

Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis

IPv4 and IPv6 dual stack

Coexistence of both protocol stacks to ease migration

Firmware upgrade

Web browser upgrade (HTTP/HTTPS) and TFTP and upgrade over SCP running over SSH
Dual images for resilient firmware upgrades

Port mirroring

Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 4 source ports can be mirrored to one destination port

VLAN mirroring

Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 4 source VLANs can be mirrored to one destination port

Smartports

Simplified configuration of QoS and security capabilities

Auto Smartports

Automatically applies the intelligence delivered through the Smartports roles to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This facilitates zero-touch deployments

Cloud services

Support for Cisco FindIT Network Manager and Cisco Active Advisor

Itens Inclusos Cisco SG250-26 - SG250-26-K9-BR_PRP

Switch Cisco SG250-26 Gerenciável - 26 Portas Gigabit (Código: SG250-26-K9-BR_PRP)
Cabo de Emergência
Kit de montagem
Guia de Instalação Rápida
